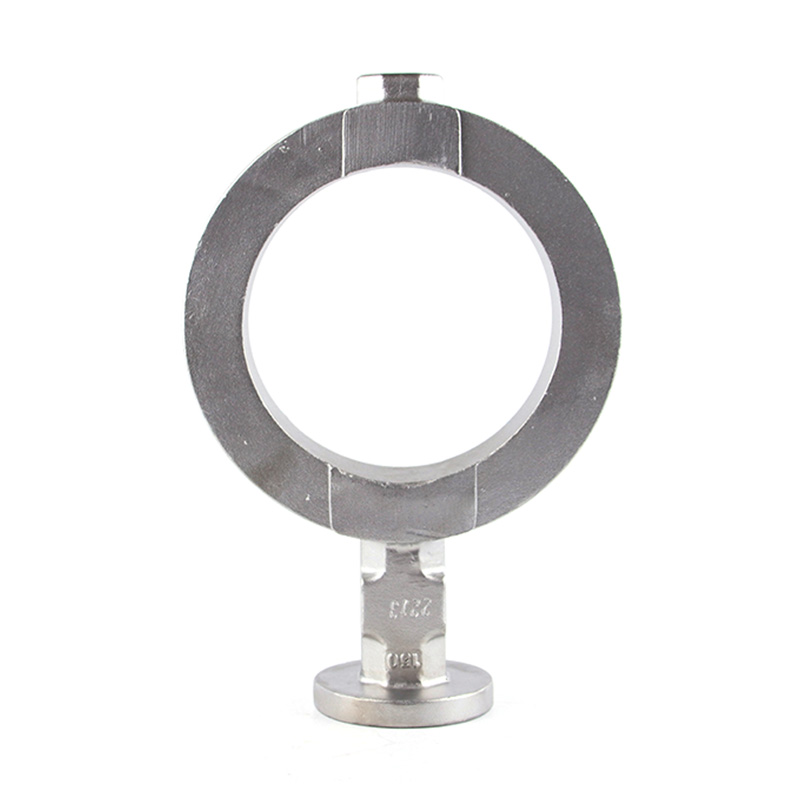

Industrial flow control systems rely on durable, precision-made components. Water treatment. Chemical processing. HVAC systems. Power generation. Without quality castings, butterfly valves leak and fail prematurely. Butterfly valve body casting delivers the structural integrity required for reliable flow control. It provides the pressure-containing housing that supports the disc and seat. It ensures dimensional accuracy for proper sealing. It makes valve performance consistent and service life longer.
The casting must withstand internal pressure without deformation
Valve bodies contain system pressure. Butterfly valve body casting is designed with adequate wall thickness and ribbing. The casting resists pressure-induced distortion. The valve seals properly. The system operates safely.
The casting must provide a precise mounting surface for the disc and shaft
Moving parts require accurate alignment. Butterfly valve body casting includes precisely machined bores and mounting faces. The disc rotates smoothly. The shaft fits correctly. The operation is consistent.
The casting must resist corrosion from the process fluid
Different fluids require different materials. Butterfly valve body casting is available in cast iron, ductile iron, stainless steel, and bronze. The material matches the application. The valve body lasts. The system remains reliable.
The pattern and mould determine dimensional accuracy
Precision starts with the pattern. Butterfly valve body casting uses patterns that create accurate mould cavities. The casting dimensions are consistent. The machining allowances are correct. The finished part meets specifications.
The alloy composition controls mechanical properties
Material properties affect performance. Butterfly valve body casting uses alloys with the correct tensile strength and corrosion resistance. The casting meets the required standards. The valve body performs as designed.
The casting process must produce defect-free components
Porosity and inclusions compromise integrity. Butterfly valve body casting uses controlled melting and pouring practices. The casting is sound. The pressure retention is maintained. The valve is safe.
Typical specifications for butterfly valve body castings:
Water and wastewater treatment plants
Large-diameter pipes require reliable valves. Butterfly valve body casting is used for isolation and control valves in treatment systems. The casting handles the flow. The valve operates reliably. The water is managed.
Chemical and petrochemical processing
Corrosive fluids require specialized materials. Butterfly valve body casting in stainless steel is used for chemical service. The casting resists attack. The valve seals properly. The process is contained.
HVAC and building services systems
Heating and cooling systems use butterfly valves for control. Butterfly valve body casting in cast iron is standard for building services. The valve body is durable. The system operates efficiently. The building is comfortable.
Power generation facilities
Cooling water and steam systems require large valves. Butterfly valve body casting is used in power plant piping. The casting withstands pressure and temperature. The valve operates when needed. The plant runs reliably.
Dimensional accuracy affects assembly and sealing
Castings must hold tolerances. Butterfly valve body casting should be verified for critical dimensions. The mounting faces are flat. The bores are concentric. The assembly is correct.
Material certification confirms alloy composition and properties
Test certificates provide assurance. Butterfly valve body casting should be supplied with material test reports. The chemistry is verified. The mechanical properties are confirmed. The casting meets the specification.
Pressure testing validates integrity
Valve bodies must hold pressure. Butterfly valve body casting should be hydrostatically tested. The casting holds the test pressure. The casting is safe. The valve is reliable.
Surface finish affects sealing and corrosion resistance
Smooth surfaces seal better. Butterfly valve body casting should have appropriate surface finish on sealing faces. The seat seals properly. The corrosion resistance is improved. The performance is enhanced.
Butterfly valve body casting provides the foundation for dependable flow control. But it determines whether a valve handles system pressure safely or develops leaks. It decides whether valve operation remains smooth or binds due to misalignment. Choose castings with appropriate material, consistent dimensions, documented material certification, and verified pressure testing. Your valves will perform reliably. Your systems will be safe. That is the purpose of butterfly valve body casting. To deliver the structural integrity that flow control depends on.
